The purpose of the Lookup Editor module is to maintain the system lookup tables. Details include test facility, geolocation and operators.

Navigate the List View

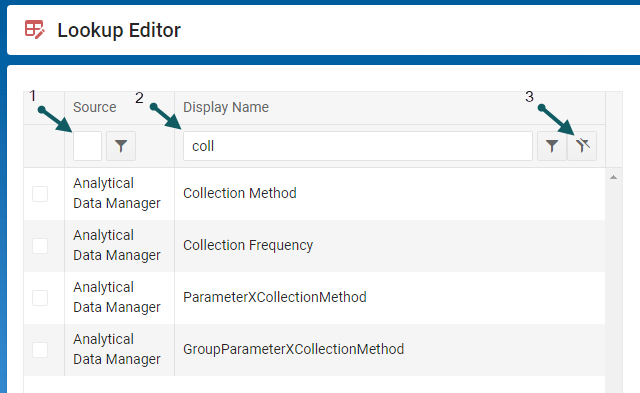

This list of lookup tables on the left side can be filtered by entering text in the filter fields for Source (1) and Display Name (2). To clear the search, click the remove filter button (3)

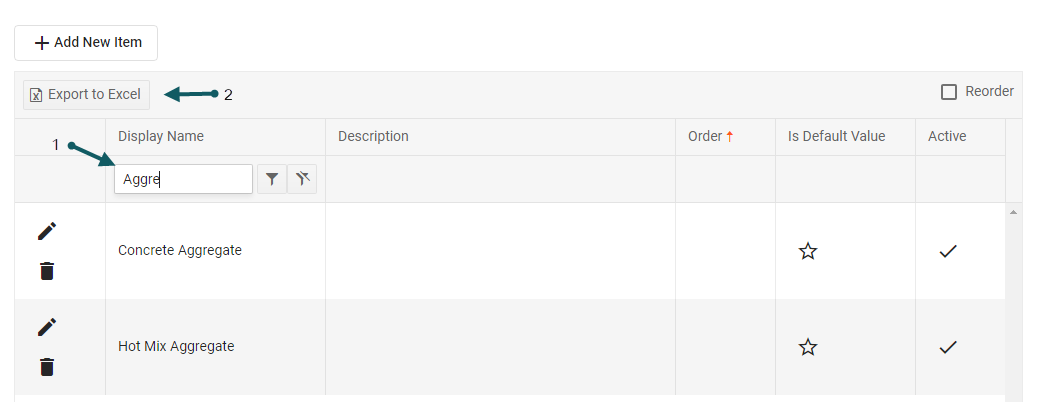

Once a lookup table has been selected, the list of data elements contained in the table (right side of the screen) can be filtered by entering text in the filter field for Display Name (1), the view can then be exported by clicking the Export to Excel button (2).

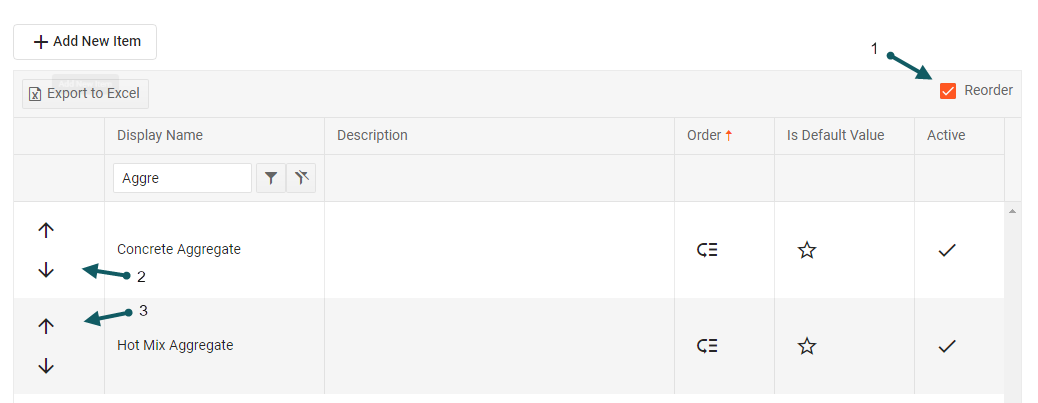

The display order of the data elements in a lookup table can also be reordered by clicking the Reorder checkbox (1). Then the elements moved down (2) or up (3) in the display order.

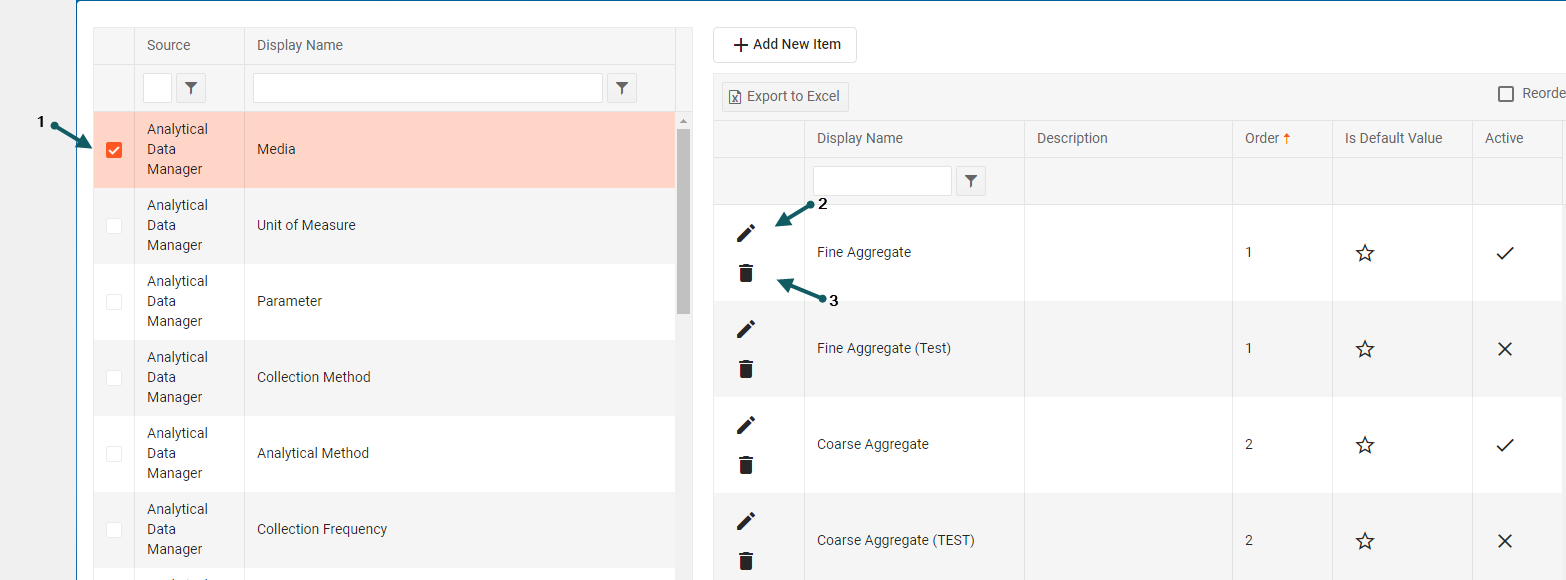

• Select the Lookup table of interest (1)
• Click the edit icon (2) button corresponding to the table entry of interest.

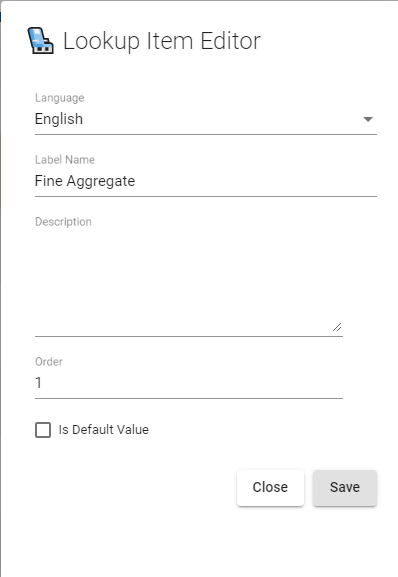

  Any of the fields (Language, Label Name, Description, Order and Default flag) may be changed. Click Save to Save and exit.

• Click the delete icon (3) button corresponding to the table entry to be deleted.

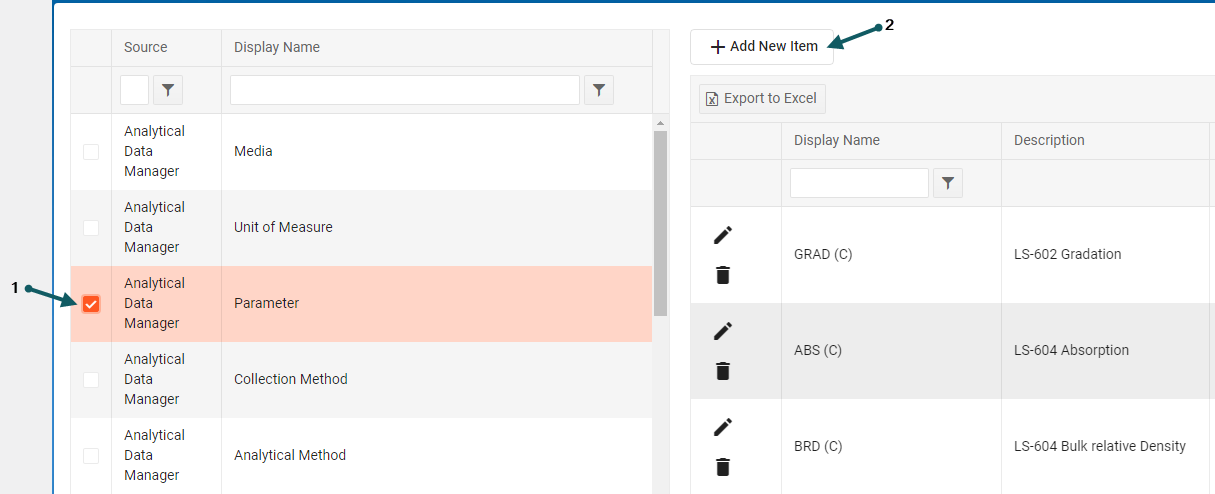

• Select the Lookup table of interest (1).
• Click the add icon (2) button corresponding to the table entry of interest.

  Update the fields (Language, Label Name, Description, Order and Default flag). Click Save to Save and exit.

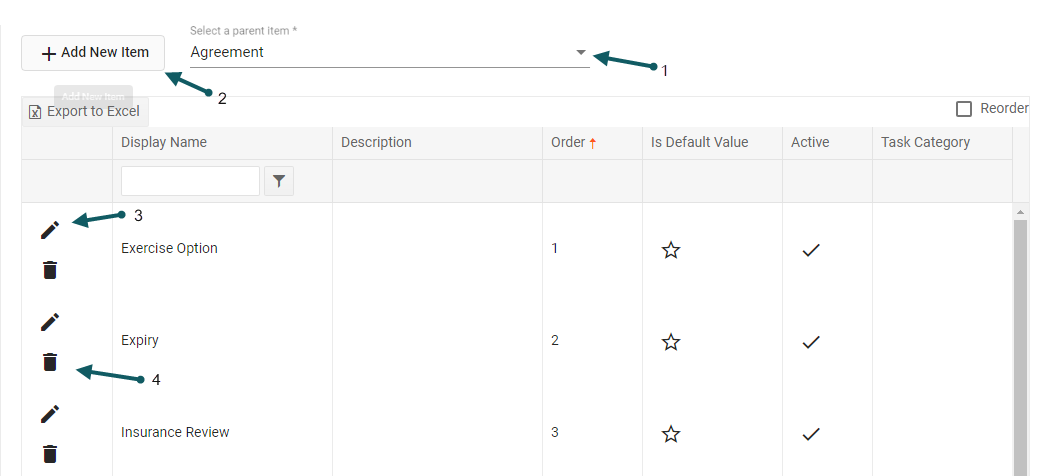

• Select the Parent Lookup table of interest.
• Click the add icon button (2) to create a new entry.
• Click the Pencil to edit (3) or the Delete Icon (4) to delete a corresponding existing entry.

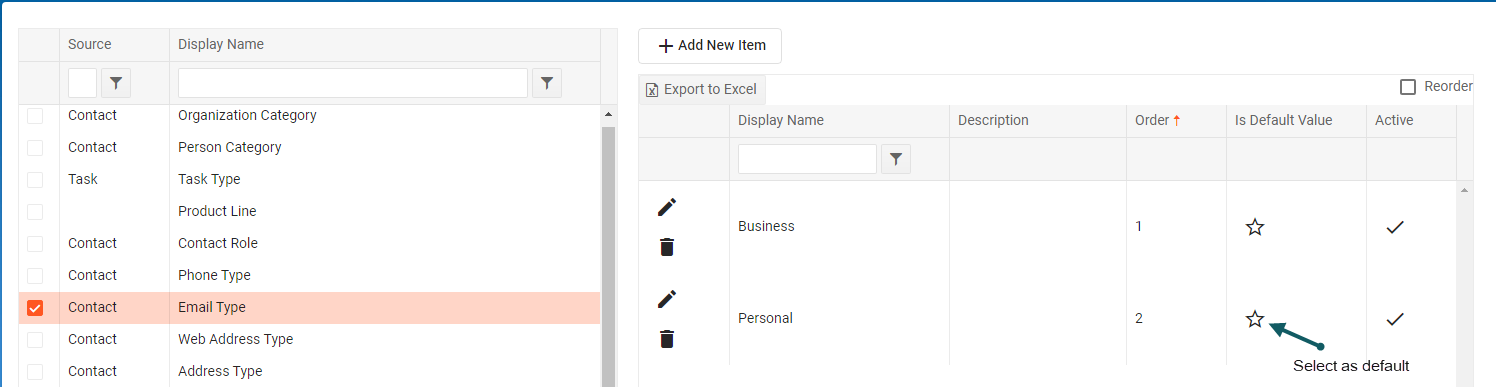

• Select the Lookup table of interest.
• Click the Star icon to set the corresponding entry as the default value. This entry will be auto-populated on any drop-down selections.
